產品分類 分類>>

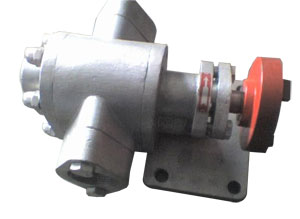

KCB不銹鋼齒輪泵
返回列表
| 用途 | |||
| |||
| 應用范圍 | |||
| |||
| 結構特點 | |||
| |||
| 型號 | 流量 | 規定壓力 MPa | 吸上高度 m.H2O | 效率 % | 電動機 | 進出口徑 mm | |||
| m3/h | l/min | 機座號 | KW | r.p.m | |||||
| KCB-6 | 0.36 | 6 | 1.45 | 5 | 44 | Y802-4 | 0.75 | 1390 | G1/2" |
| KCB-10 | 0.6 | 10 | |||||||
| KCB-18.3 | 1.1 | 18.3 | Y90L-4 | 1.5 | 1400 | G3/4" | |||
| 2CY-1.1/1.45 | |||||||||
| KCB-33.3 | 2 | 33.3 | Y100L1-4 | 2.2 | 1420 | ||||
| 2CY-2/1.45 | |||||||||
| KCB-55 | 3.3 | 55 | 0.33 | 3 | 41 | Y901-4 | 1.5 | 1400 | G1" |
| 2CY-3.3/0.33 | |||||||||
| KCB-83.3 | 5 | 83.3 | 43 | Y100L1-4 | 2.2 | 1420 | G11/2" | ||
| 2CY-5/0.33 | |||||||||
| KCB-135 | 8 | 135 | 5 | 49 | Y112M-6 | 2.2 | 940 | φ50 | |
| 2CY-8/0.33 | |||||||||
| KCB-200 | 12 | 200 | Y112M-4 | 4 | 1440 | ||||
| 2CY-12/0.33 | |||||||||
| KCB-290 | 17.4 | 290 | 0.36 | 5 | 50 | Y132M2-6 | 5.5 | 960 | φ70 |
| KCB-300 | 18 | 300 | |||||||
| 2CY-18/0.36 | |||||||||
| KCB-480 | 29 | 480 | 5 | 50 | Y132M-4 | 7.5 | 1440 | φ70 | |
| KCB-483.3 | 483.3 | ||||||||
| 2CY-29/0.36 | |||||||||
| KCB-633 | 38 | 633 | 0.28 | 4 | 52 | Y160L-6 | 11 | 970 | φ100 |
| 2CY-38/0.28 | |||||||||
| KCB-960 | 58 | 960 | 5 | Y180M-4 | 18.5 | 1470 | |||
| 2CY-58/0.28 | Y180L-4 | 22 | |||||||
| KCB-1200 | 72 | 1200 | 0.6 | 3 | 44 | Y280S-8 | 37 | 740 | φ150 |
| KCB-1600 | 96 | 1600 | Y280S-6 | 45 | 980 | ||||
| KCB-1800 | 108 | 1800 | 2.5 | 46 | Y315S-8 | 55 | 740 | φ200 | |
| KCB-2500 | 150 | 2500 | Y315S-6 | 75 | 985 | ||||
| KCB-2850 | 171 | 2850 | 2 | 48 | Y315L1-8 | 90 | 740 | φ250 | |
| KCB-3800 | 228 | 3800 | Y315L1-6 | 110 | 990 | ||||
